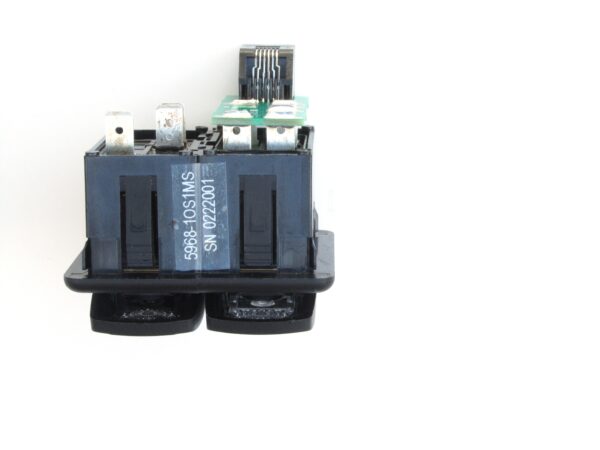

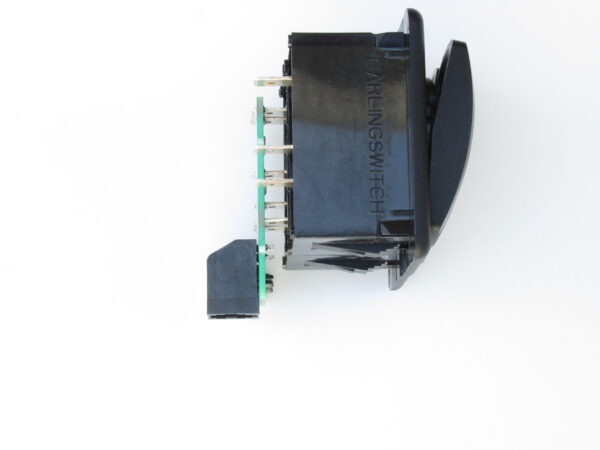

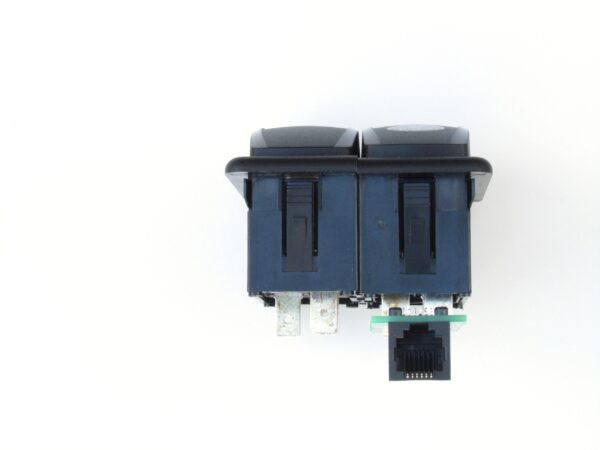

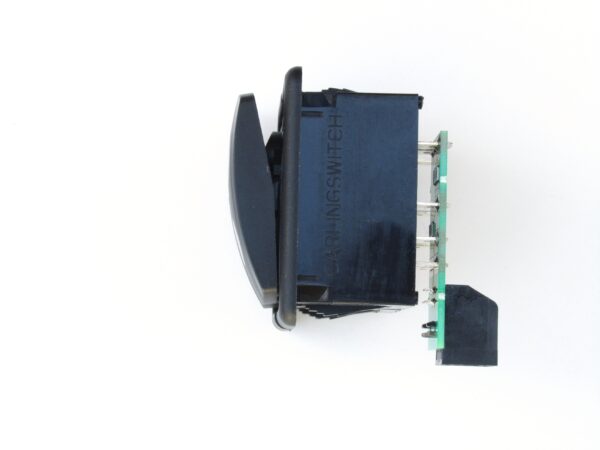

Pro-Series Dual Switch Housing 1 OS 1 MS

$138.64

Pro-Series Dual Snap-in Housing with 1 Operator and 1 Master switch pre-installed and custom lables. Bright Red and Green for exterior use
Switch and Housing assembly alone, connecting cables not included.

1 Year Warranty

Features

• Easy, Snap-in unified switch and housing assembly
• Only 1 cutout needed for a multi switch housing
• Housing ensures perfect inter-switch alignment
• Space-saver design increases mounting freedom
• Distinctive, elegant appearance and styling
• Versatile – mounts on wide range of panel thickness and materials
• IP 66 compliant
• Closed cell gasket seal on each switch
• Custom labels
• Available in Single (Mono) up to 5 Switch (Penta) housing
• Housings maintain matching style
• RoHS and Lead Free compliant

Tech Data

OPERATOR SWITCH  (Pre-installed in Dual housing)

• Illumination: Internal Bright RED and Bright GREEN LEDs
• Mounting: Switch comes pre-installed in flush-mount, snap-in Dual housing with matching Master switch (see below)
• Switch Type: Momentary contact rocker with custom PCB assembly
• Sealing: Switch to Housing sealed with closed cell gasket; Switch sealed with dual seals around LEDs and rocker stem
• IP rating: IP66 from front panel
• Hole cutout for Dual snap-in housing: 2.02 x 1.9 inch (53.1 mm x 48.3 mm)
• Panel thickness range : 0.062 (1.57 mm) to 0.375 inch (9.52 mm) (Refer Doc DM 114 for details)
• Rear clearance requirement: 1.92 Inch measured from front of panel (Housing seating surface)

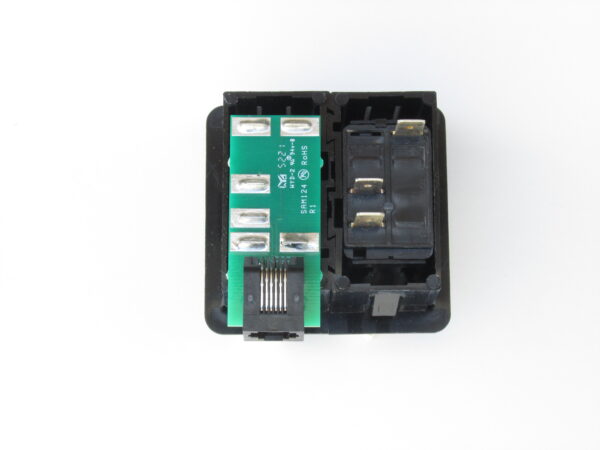

• Interface: 6/4 RJ 11 socket, gold plated contacts, mounted on rear PCB assembly
• Actuator: Aesthetic symmetrically curved, black nylon
• Actuating force: 460 grams +/- 30, (4.5 N +/- 0.3)
• Actuating distance to rocker center: 20 mm
• Lens – Dual prismatic, clear polycarbonate set in rocker
• Operating life: 50,000 cycles min
• Industry certification: Switch meets MIL Std. 202F, MIL Std. 810C, UL 1500, ISO 8846, IEC 60529 and BS 5490

MASTER SWITCH PN 5890 (Pre-installed in Dual housing)

• Illumination: Bright RED internally wired and ballasted; lights when system is enabled
• Mounting: Switch comes pre-installed in flush-mount, snap-in Dual housing with Operator switch
• Sealing: Switch to Housing sealed with closed cell gasket; Switch sealed with seal around LED and rocker stem
• Rating: 4-14 V DC, 20 Amp
• IP rating: IP66 from front panel
• Hole cutout for Dual snap-in housing: 2.02 inch (53.1 mm x 48.3 mm) x 2.20 inch (51.3 mm)
• Panel thickness range: 0.062 (1.57 mm) to 0.375 inch (9.52 mm) (Refer Doc DM 114 for details)
• Rear clearance requirement: =1.92 Inch (48.8 mm) measured from front of panel (Housing seating surface)
• Connections: 12 V In, 12 V Out (switched), and Ground for power On-LED
• Terminals: 1/4”(6.3mm) Quick Connect, Industry standard
• Actuator: Aesthetic symmetrically curved, black nylon
• Actuator Travel: 18 Degrees
• Lens – Single prismatic, clear polycarbonate set in rocker
• Operating life: 50,000 cycles min
• Certification: MIL Std. 202F, MIL Std. 810C, UL 1500, ISO 8846, IEC 60529 and BS 5490
