Drain Master Pro-Series 20 Amp Master Switch – New
$56.34

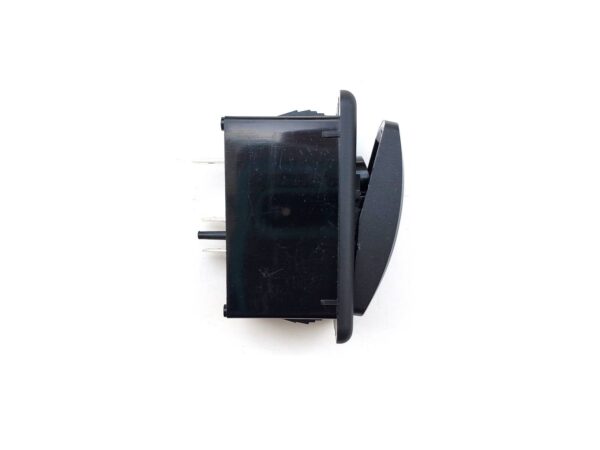

Drain Master Pro-Series 20 Amp Master Switch pre-installed in a Snap-in Mono Housing
Master Switch (Carlingtech), 20 Amp, Sealed IP 66, with integral power-on LED for Pro- Series valves, used to enable/disable system
(Optional accessory item, recommended)
Switch and housing alone, wiring not included
Snap-in housing with switch fits narrow spaces – switch plate not required.
1 Year Warranty
Features
System Master Switch is an optional accessory item, recommended for all Pro Series valve kits. This 2 position, rocker style switch, custom built for DM, is front sealed IP66 and comes pre-installed in a Mono Snap-in housing. Size, style and form factor match Drain Master Multi Switch Housings. Snap-in housing fits narrow spaces and eliminates the switch plate. 20 Amp rating easily switches on/off up to 4 valves operated simultaneously from the 12 VDC line. The integral power-on LED clearly indicates when the system is active. Master switch is used to enable/disable the system, for example when the RV is in motion and during hooking up etc. At power-up it ensures all valves will ‘home’ to their safe, closed position.
Additional Master Switches may be used for other functions up to 20 amp DC such as a macerator pump, water pump etc. For convenient, all-in-one place functionality and matching looks simply install additional master switches side by side or let us build a Custom Switch Panel for you.
Technical Data
• Mounting: Switch comes preinstalled in flush-mount, snap-in housing
• Sealing: Switch to Housing sealed with closed cell gasket; Switch sealed with dual seals around LEDs and rocker stem
• Rating: 4-14 V DC, 20 Amp
• IP rating: IP66 from front panel
• Hole cutout for snap-in housing: 0.99 inch x 1.90 inch (25.1 mm x 48.3 mm)
• Panel thickness : Min: 0.062 inch (1.57 mm) Max: 0.375 inch (9.52 mm)
• Rear clearance requirement: 1.92 Inch measured from front of panel (Housing seating surface)
• Connnections: 12 V In, 12 V Out (switched), and Ground for power On-LED.
• Terminals: 1/4”(6.3mm) Quick Connect, Industry standard
• Actuator: Aesthetic symmetrically curved, black nylon
• Actuator Travel: 18 Degrees
• Illumination: Bright RED standard, internally wired and ballasted; custom color options Amber or Blue available
• Lens – Single prismatic, clear polycarbonate set in rocker
• Operating life: 50,000 cycles min
• Certfication: MIL Std 202F, MIL Std 810C, UL 1500, ISO 8846, IEC 60529 and BS 5490
Installation
System Master Switch Installation Instructions are covered in document link below:
DM106 System Master Switch Installation
PDF Files open in a new window – view in browser or save for off-line viewing or printing
