Weatherproof Heavy-duty LED Switch w/wiring harness & 5 amp inline fuse
$58.40

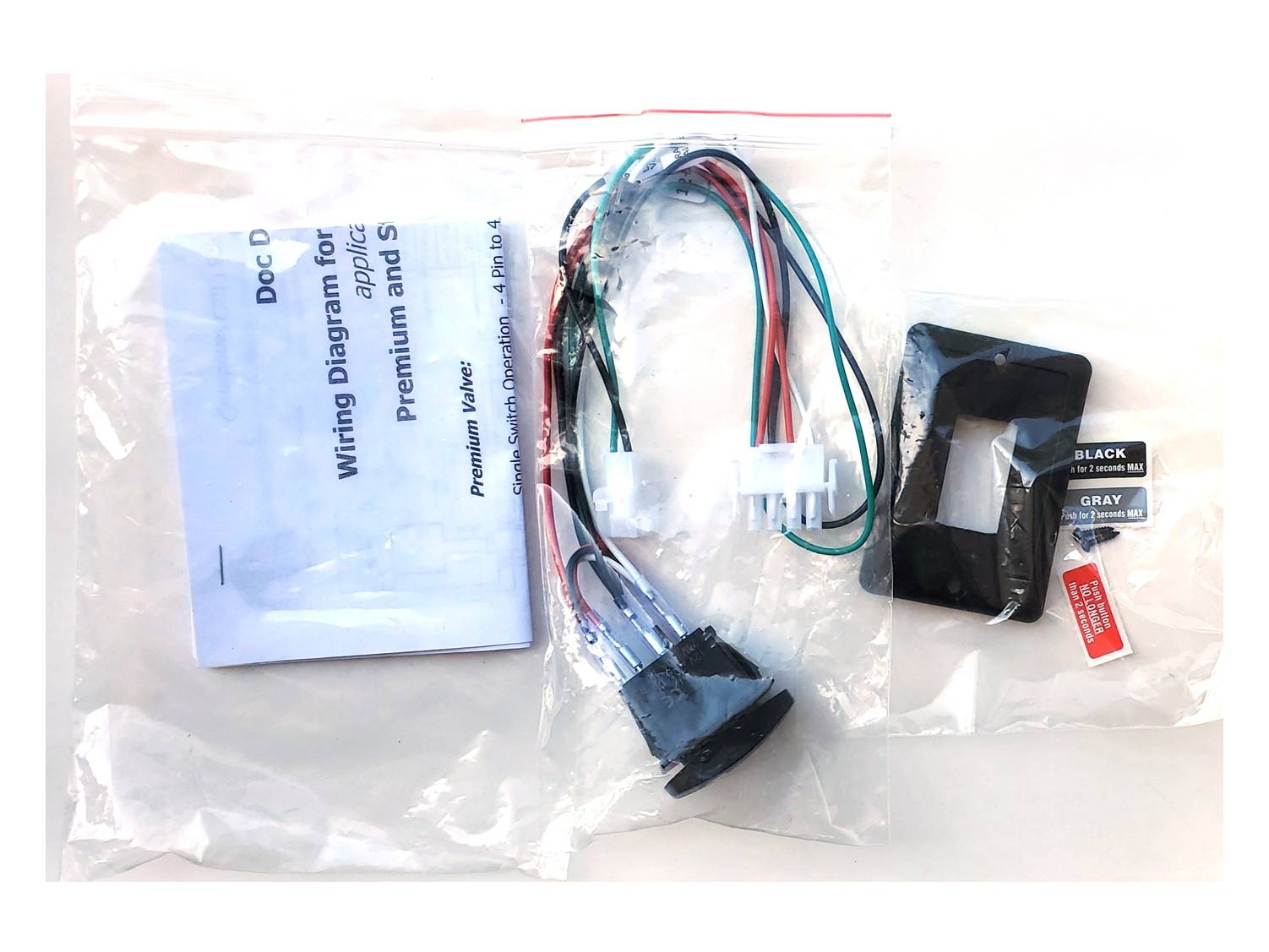

Operator switch for Premium Drain Master Valves. Now includes an inline fuse to prevent motor damage. Wires to valve and plug approx. 12″ long (plug included). Also includes switch plate, screws and labels for grey or black tank.
Compatible with Premium Drain Master Waste Valves. Not sure what type of valve you have. See our Valve Replacement Guide
Do you need 2 or 4 pin plugs on your switch? Find out!
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
Technical Data

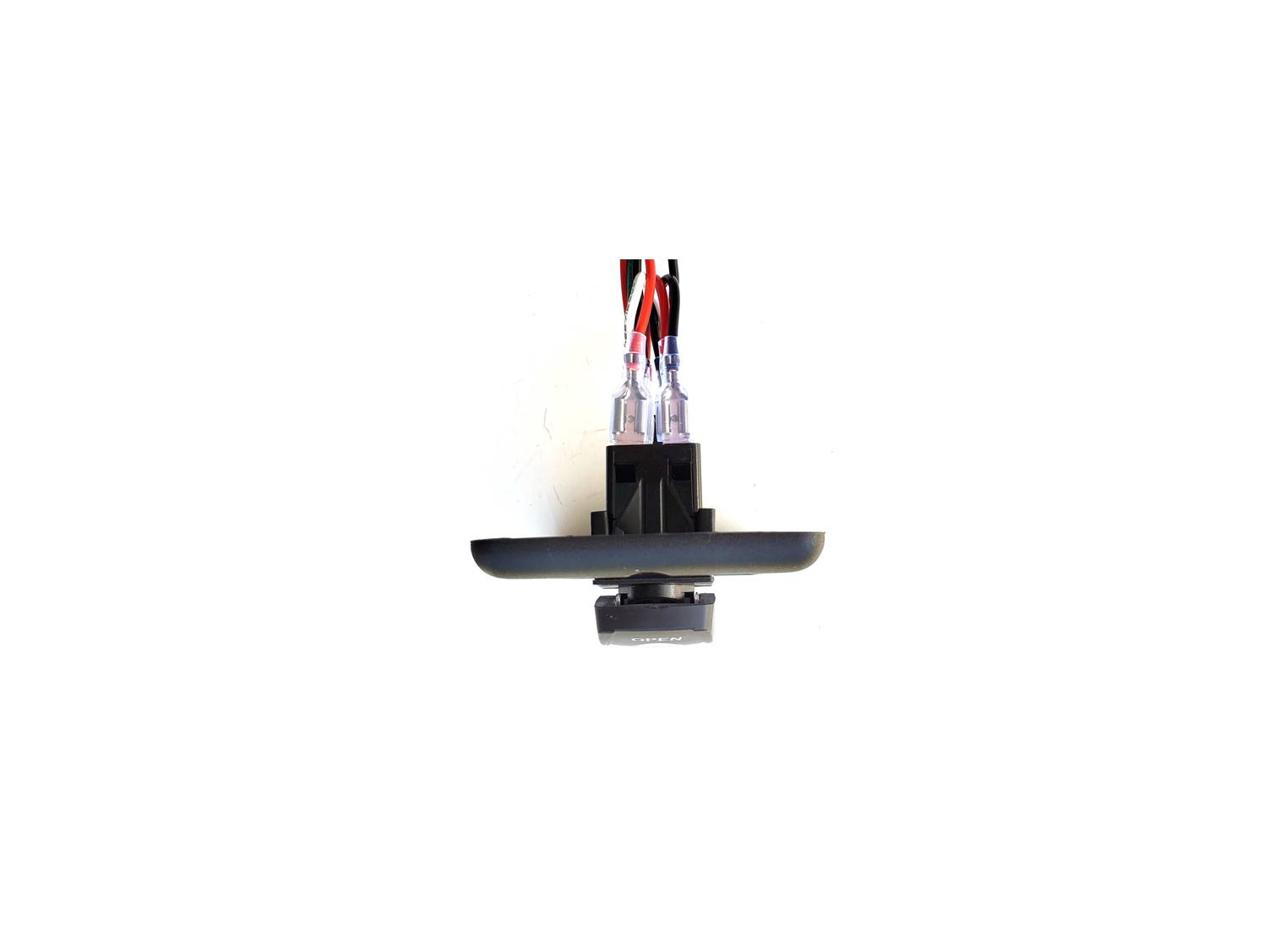

Switch Dimensions-
1 15/16″ wide
1 7/8″ high
Switch Plate Dimensions-
2 1/2″ wide
3 5/8″ high
Wire Harness – approximately 12 in long including electrical plugs
Fuse- 5 amp fast blow type PN 5778
Installation
Installation Instructions – PDF Files will open in new window.
DM50 Wiring Diagram for Standard and Premium Drain Master Valves
Always install switch in a location protected from moisture, such as a wet bay or compartment.
Switch can be installed with or without included switchplate.
